Car Chassis Welding Fixture 3D Model – High Precision CAD Design, FBX
File Formats
Native Format
Exchange Formats
Features
Unwrapped UVs
Download information
After purchase, you will receive an email within several hours with a download link to access your files.
Description

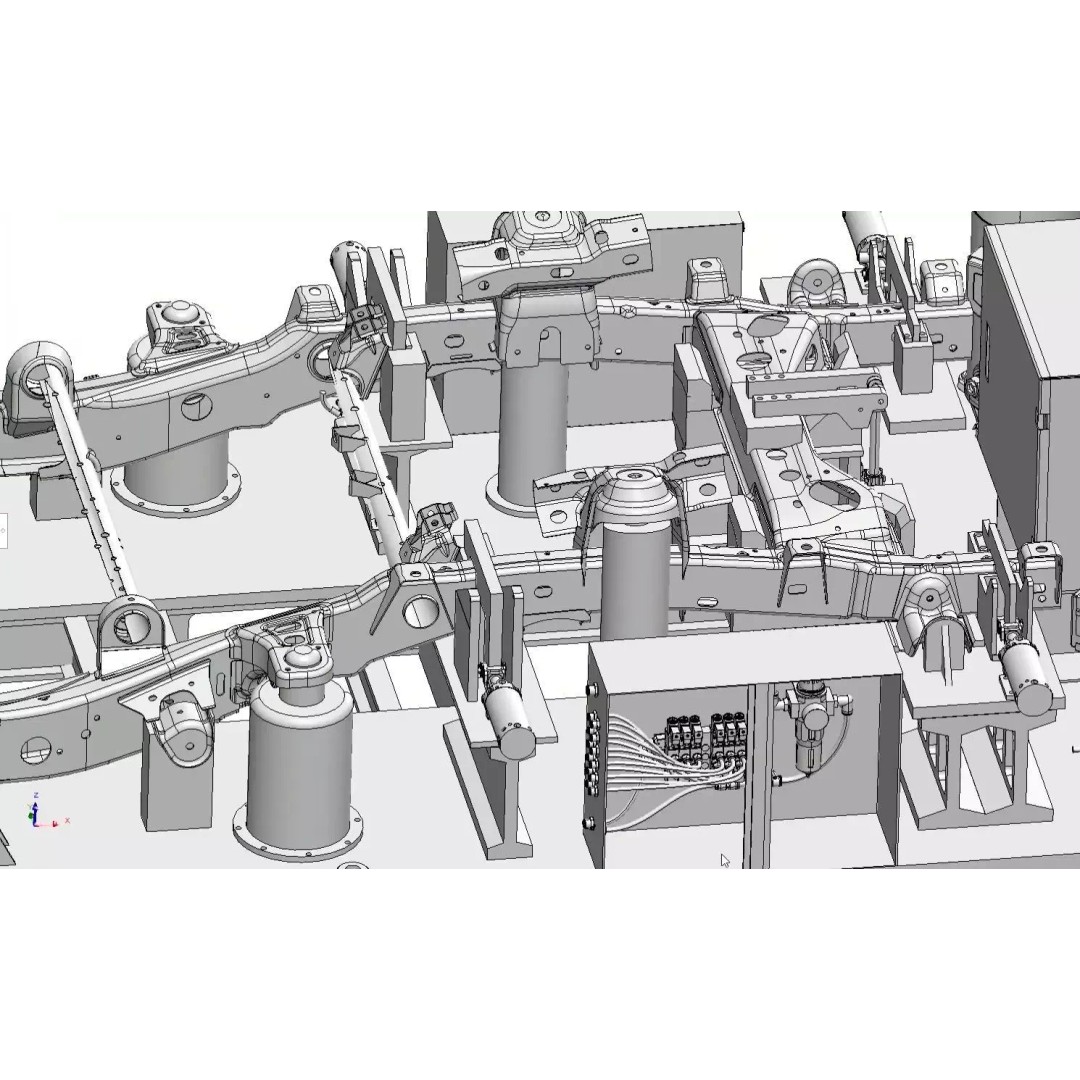

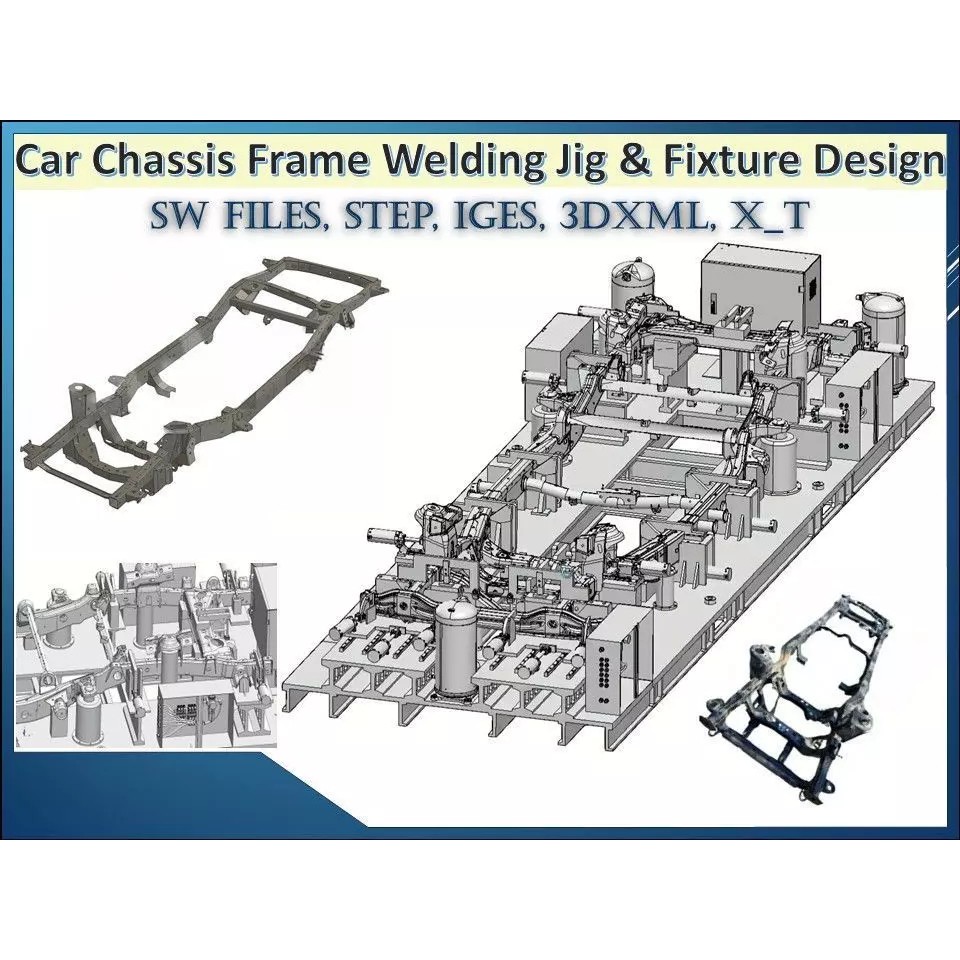

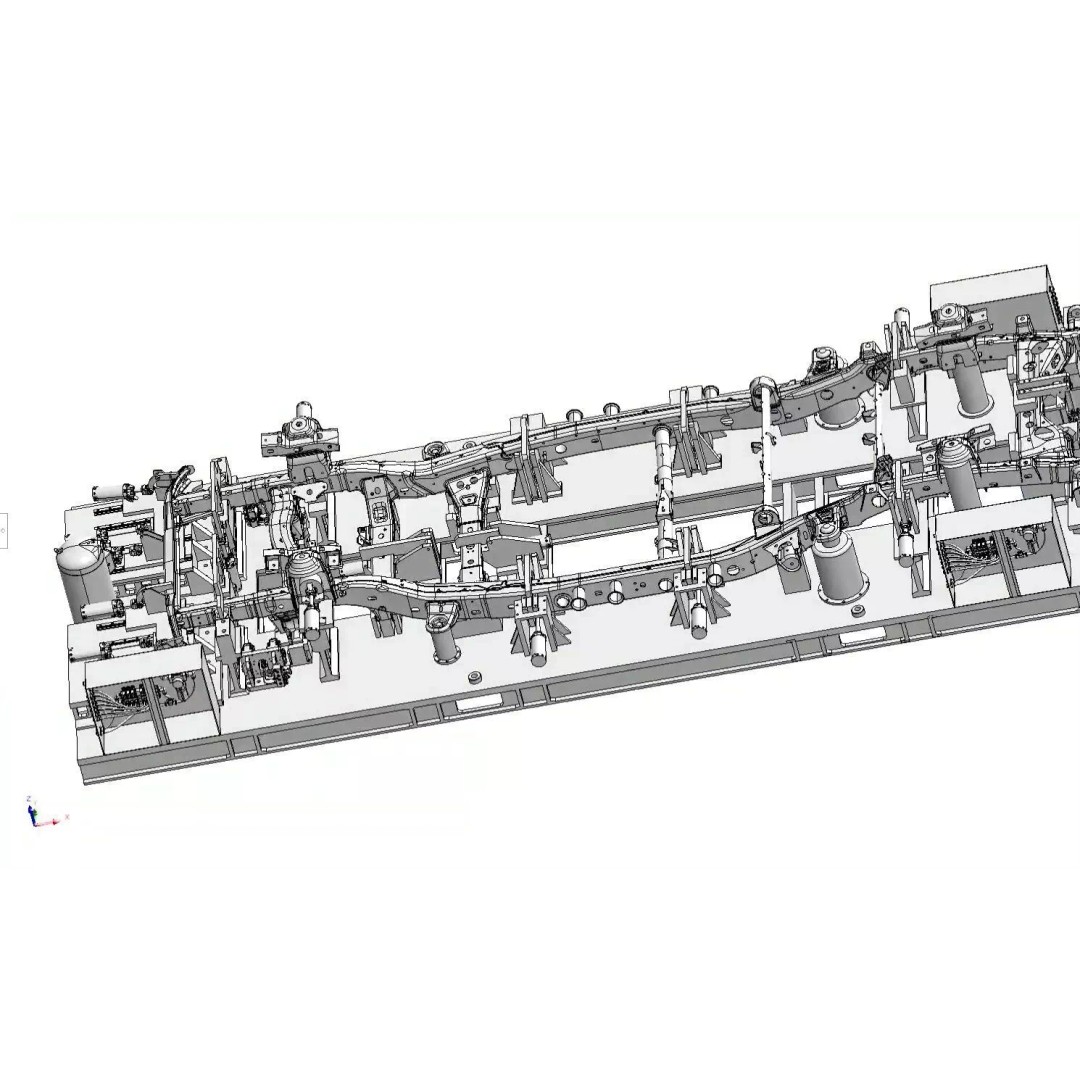

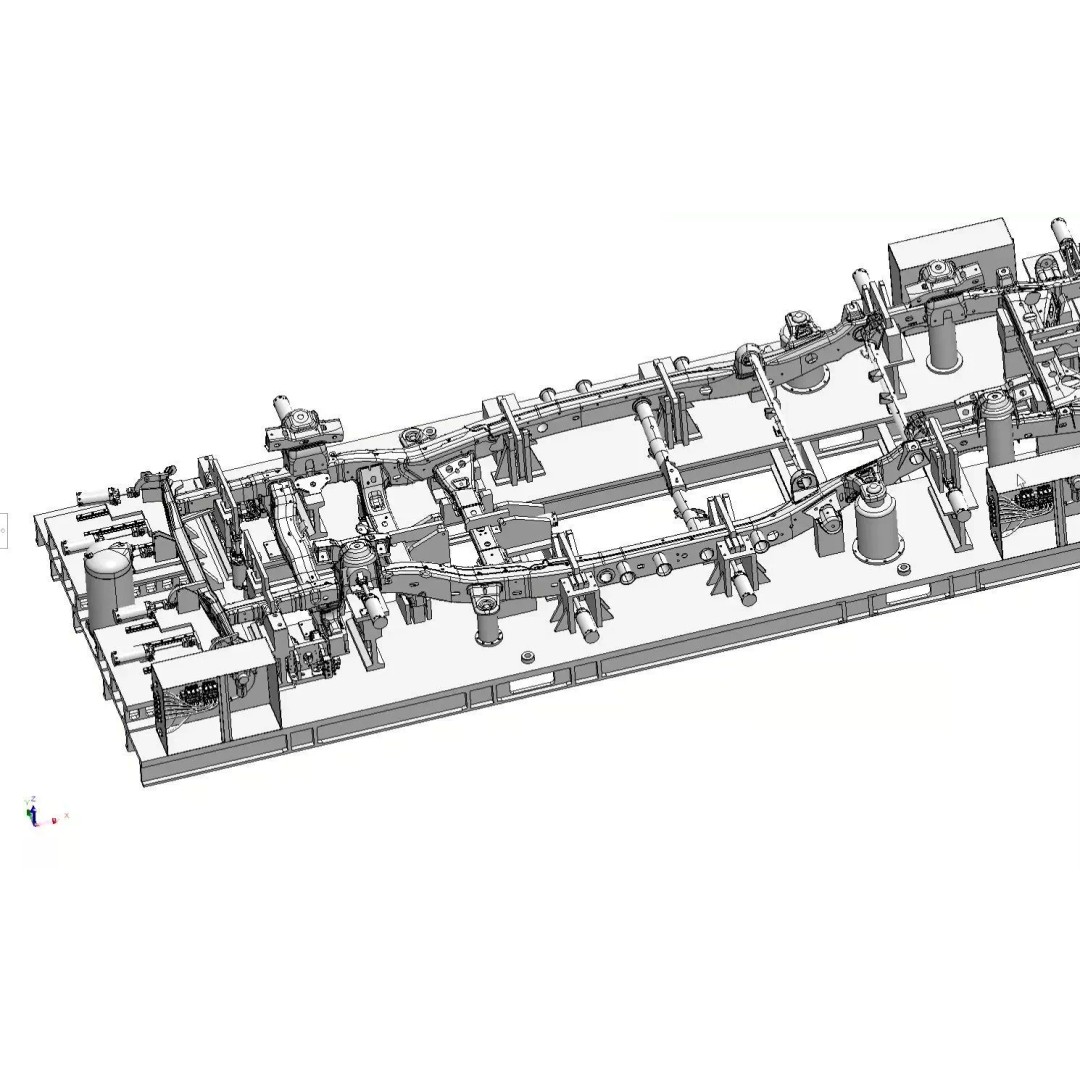

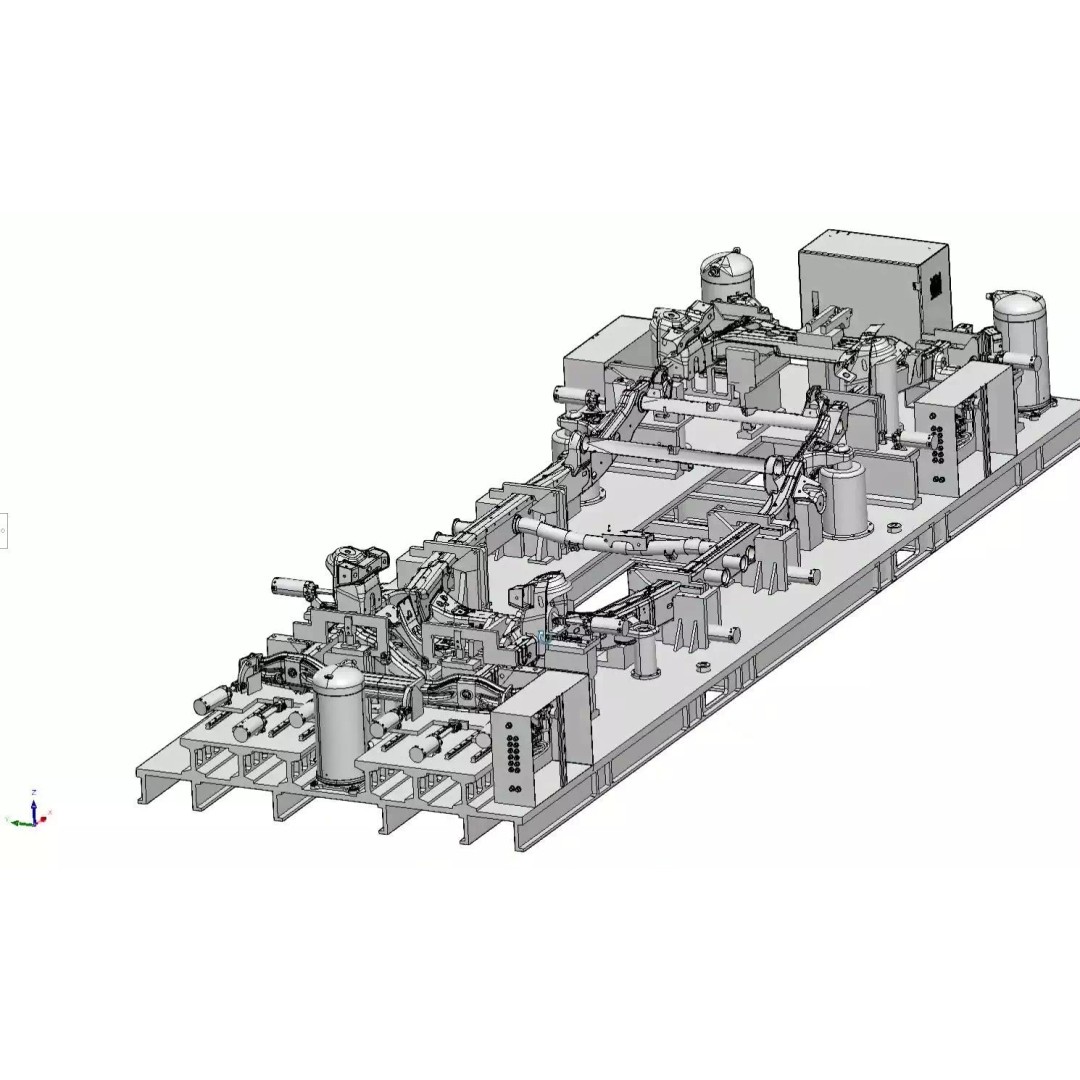

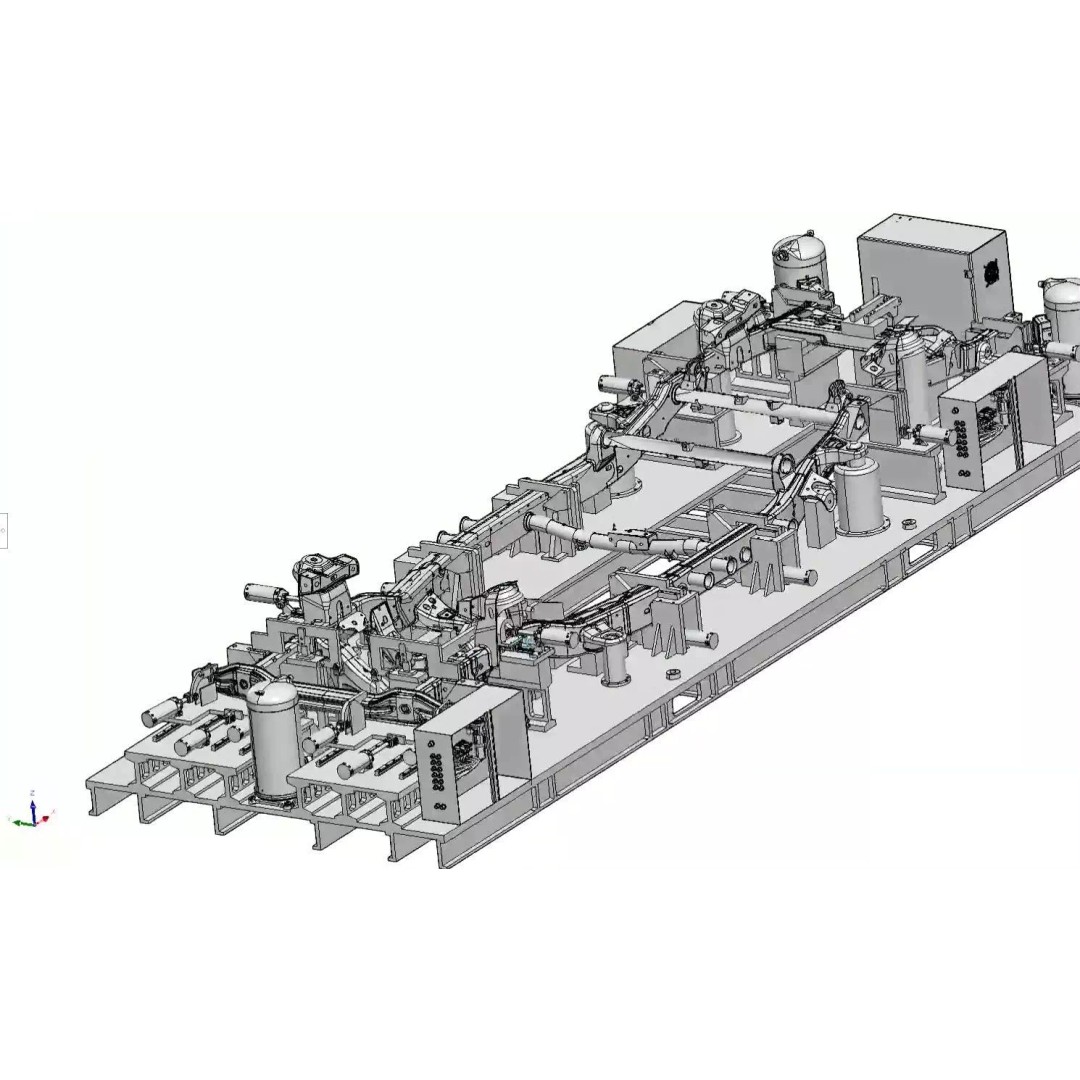

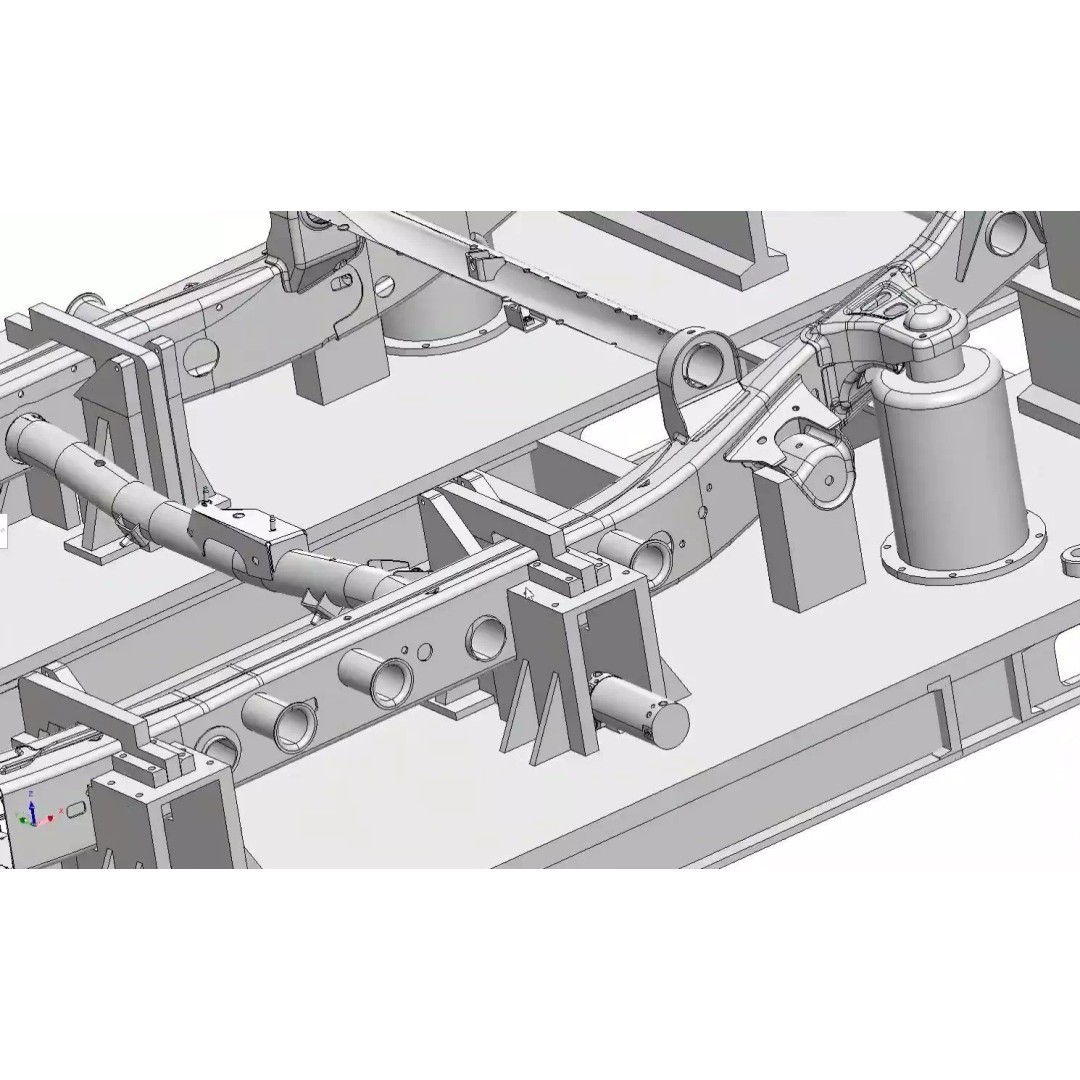

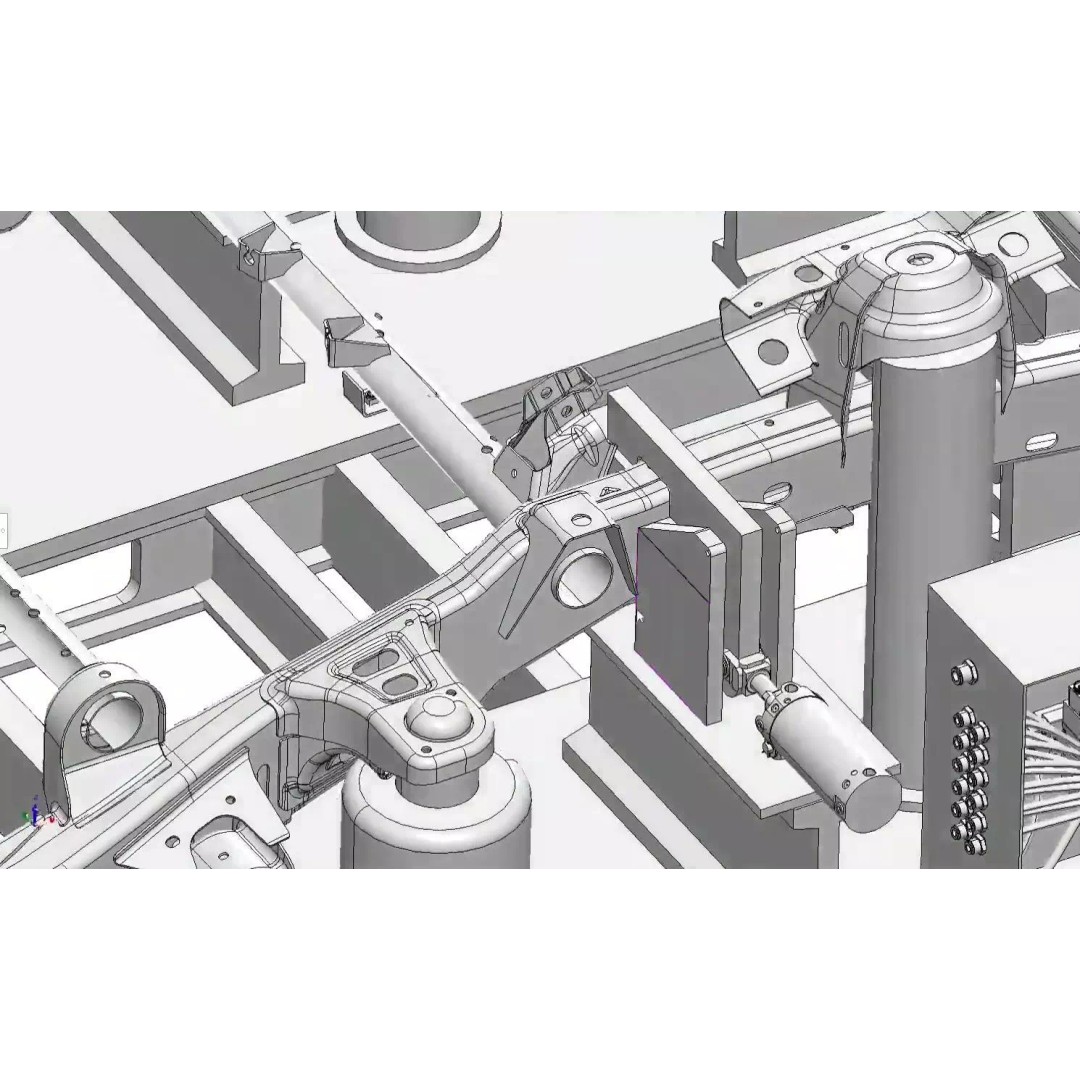

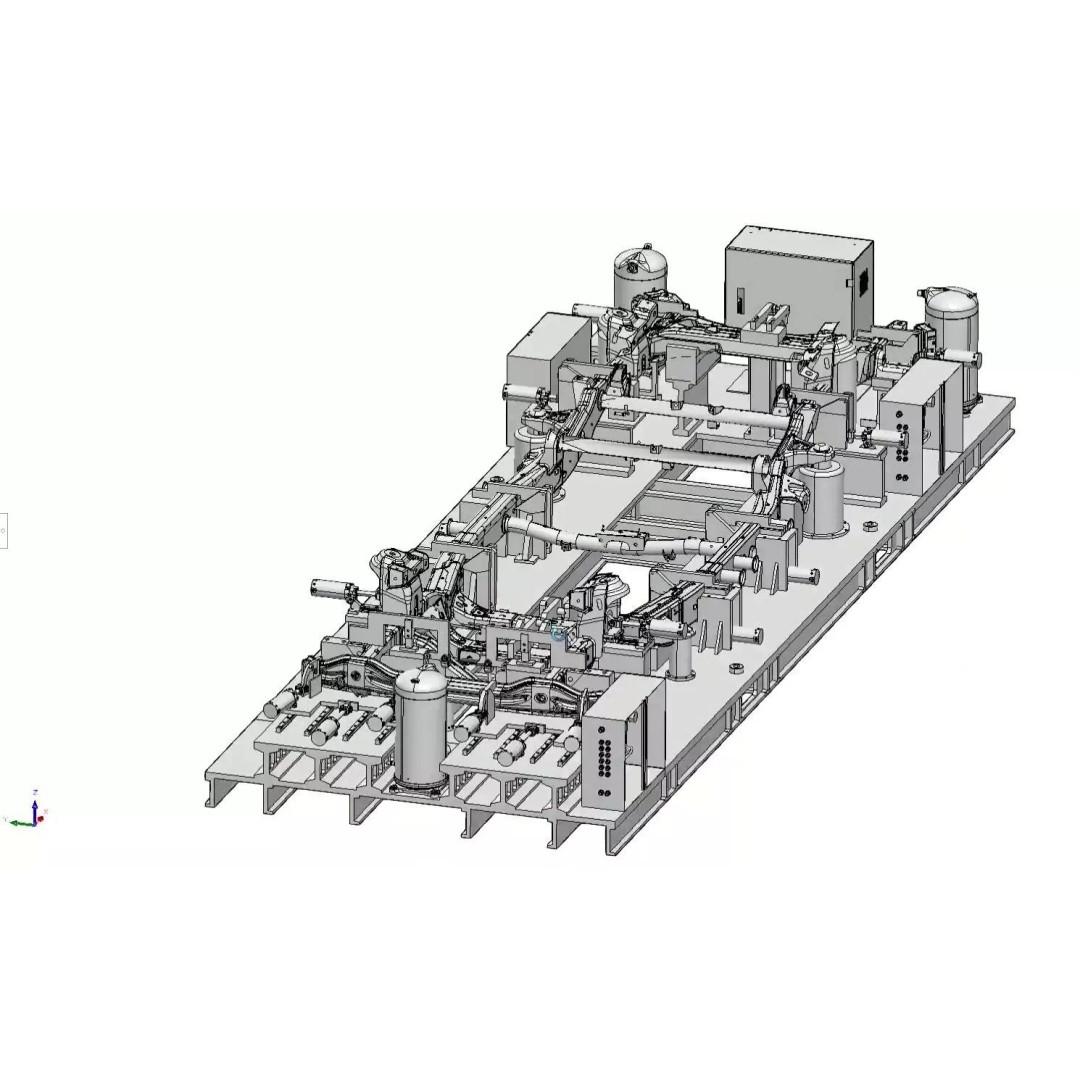

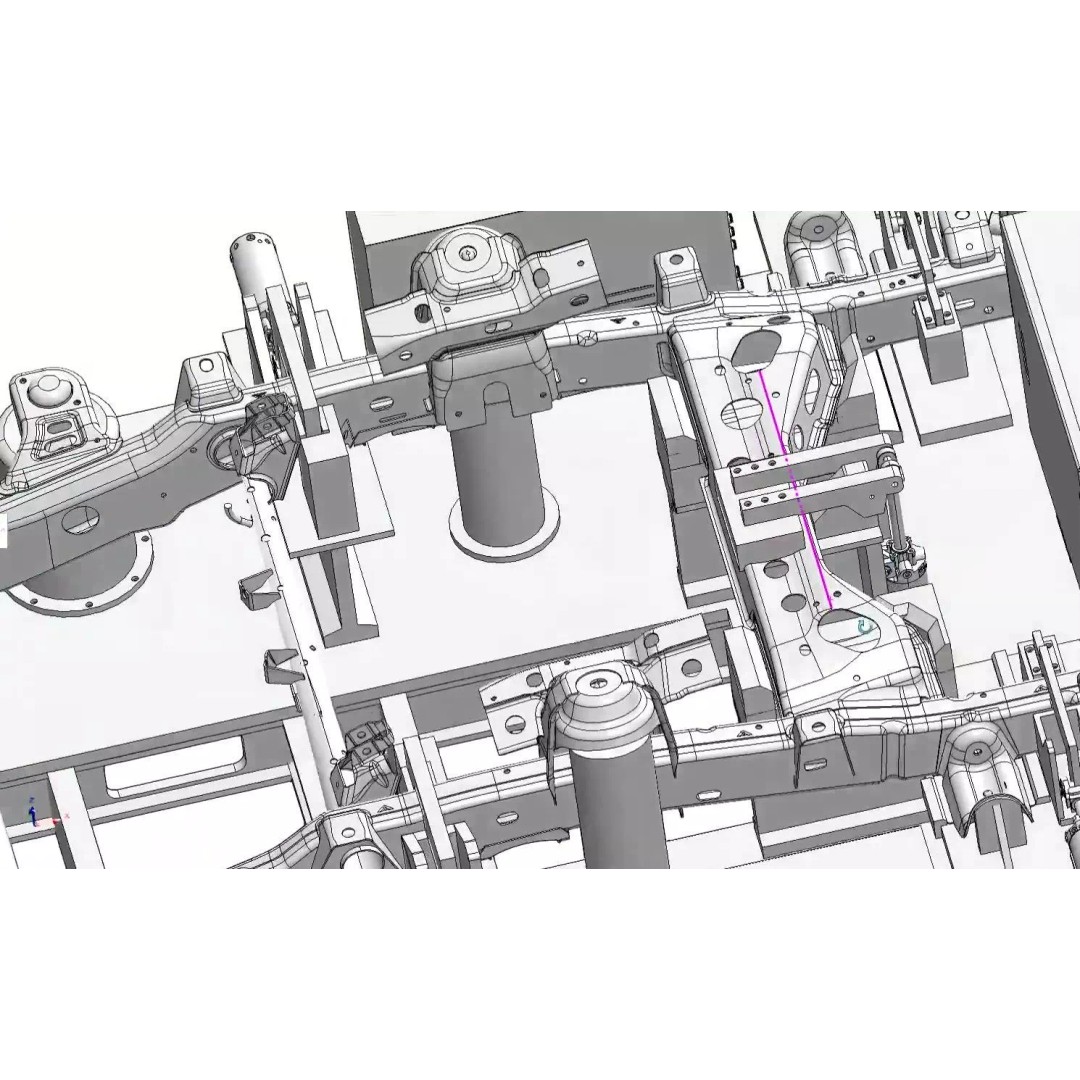

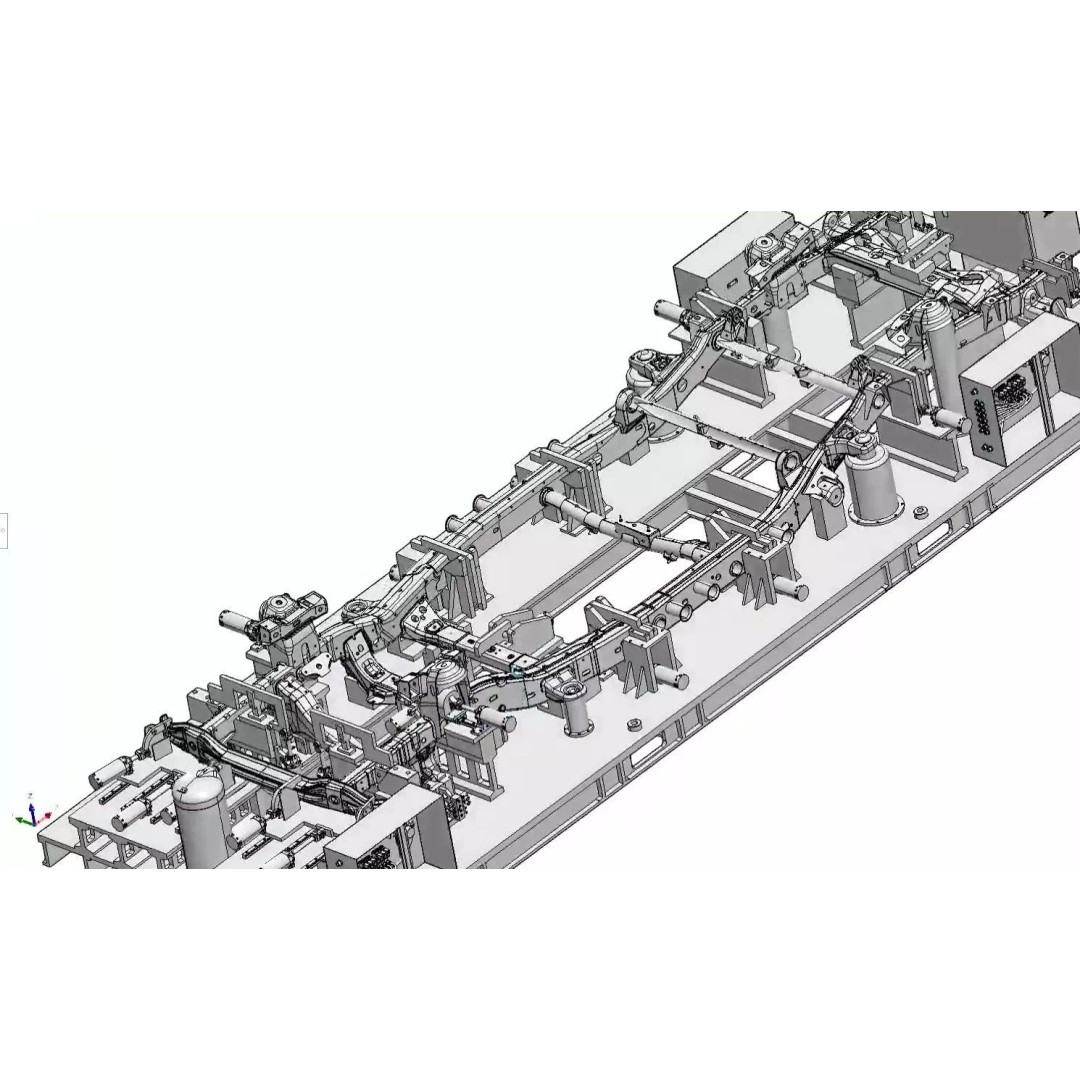

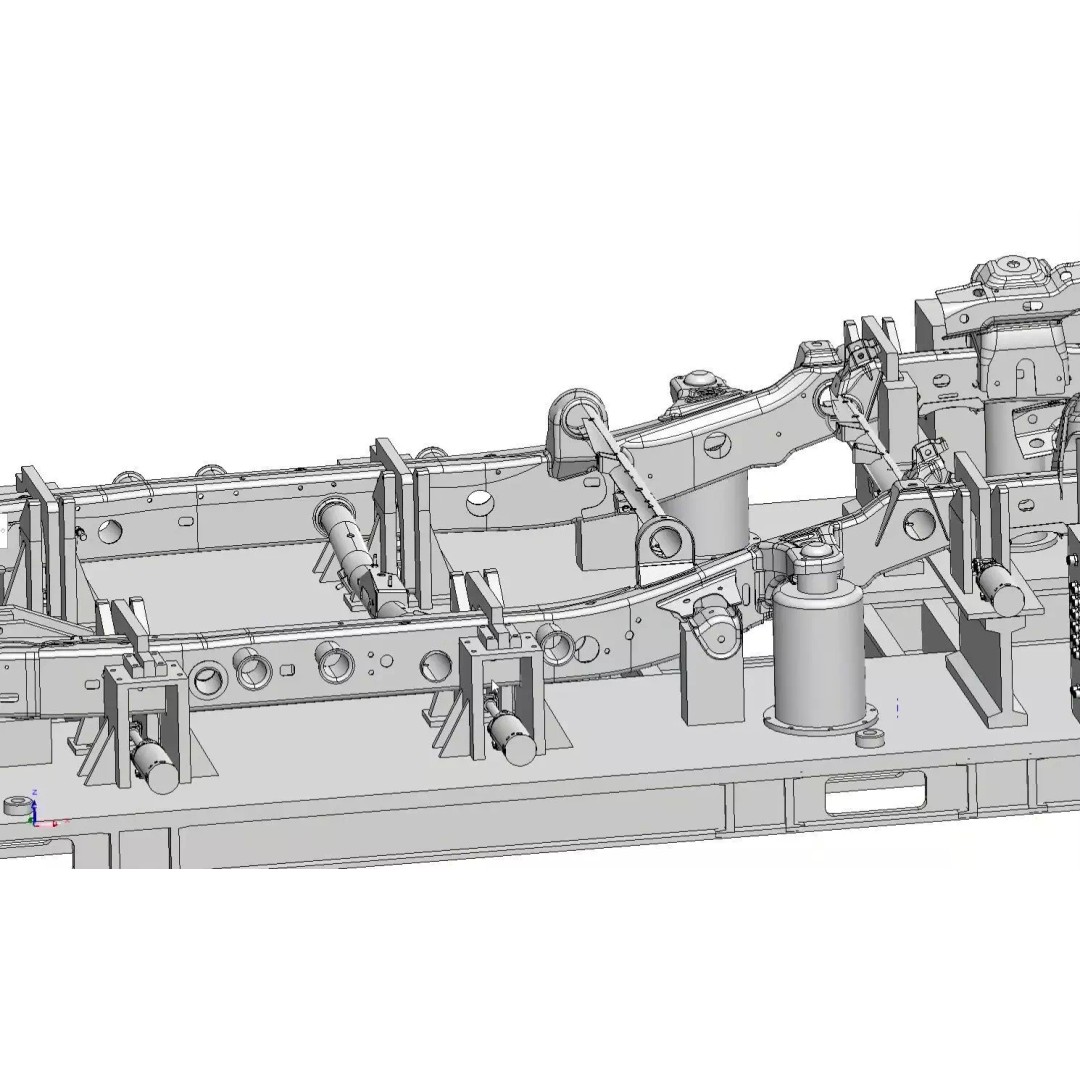

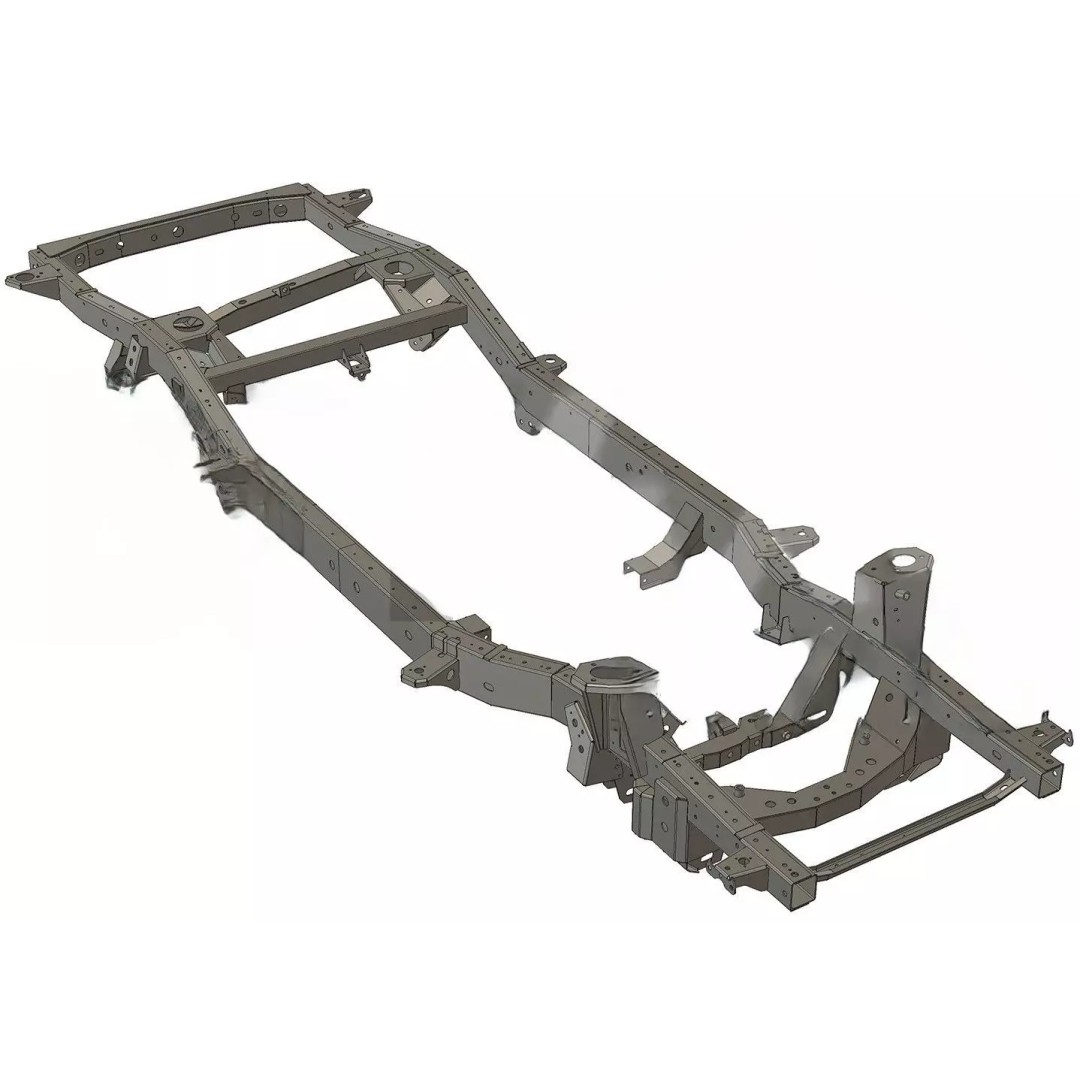

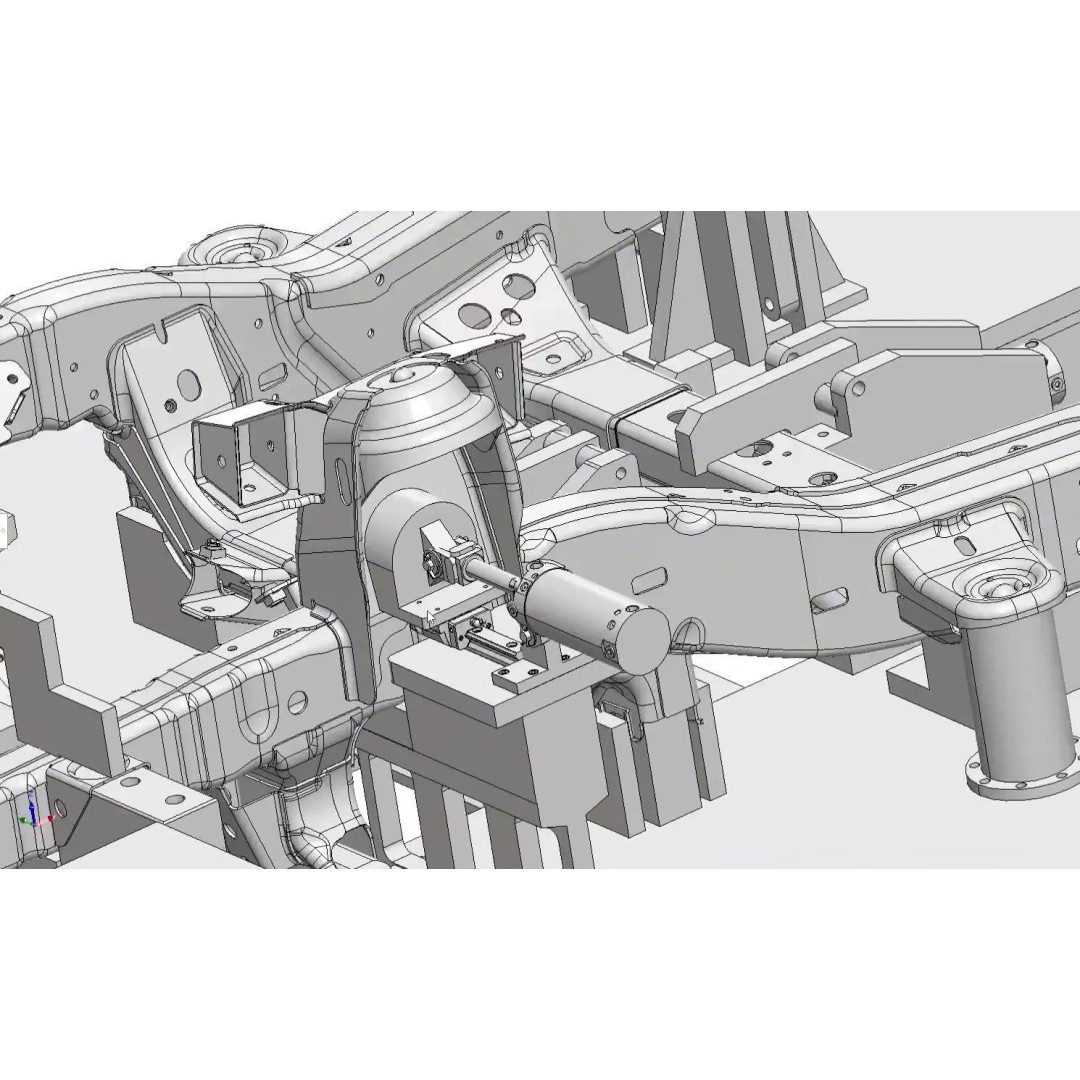

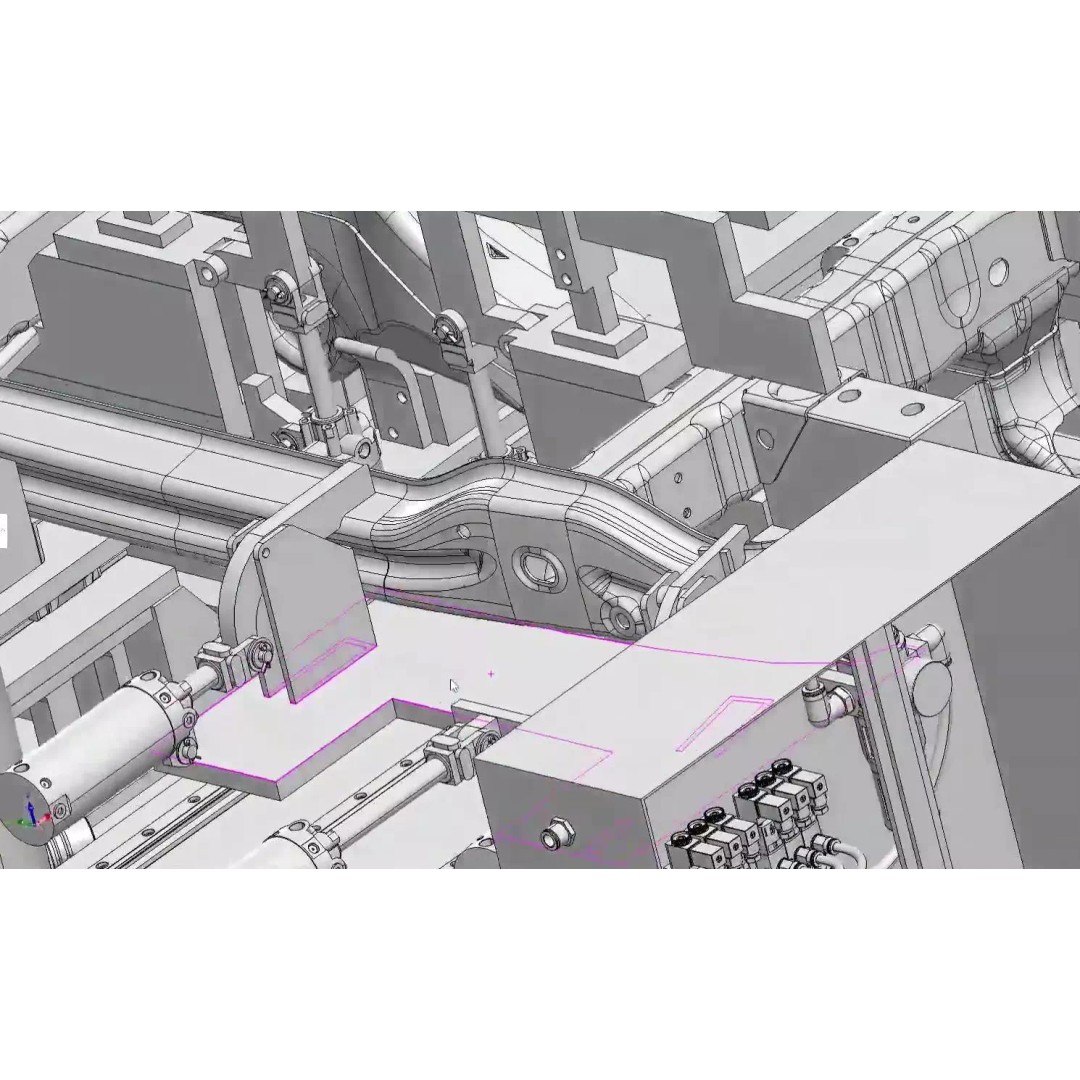

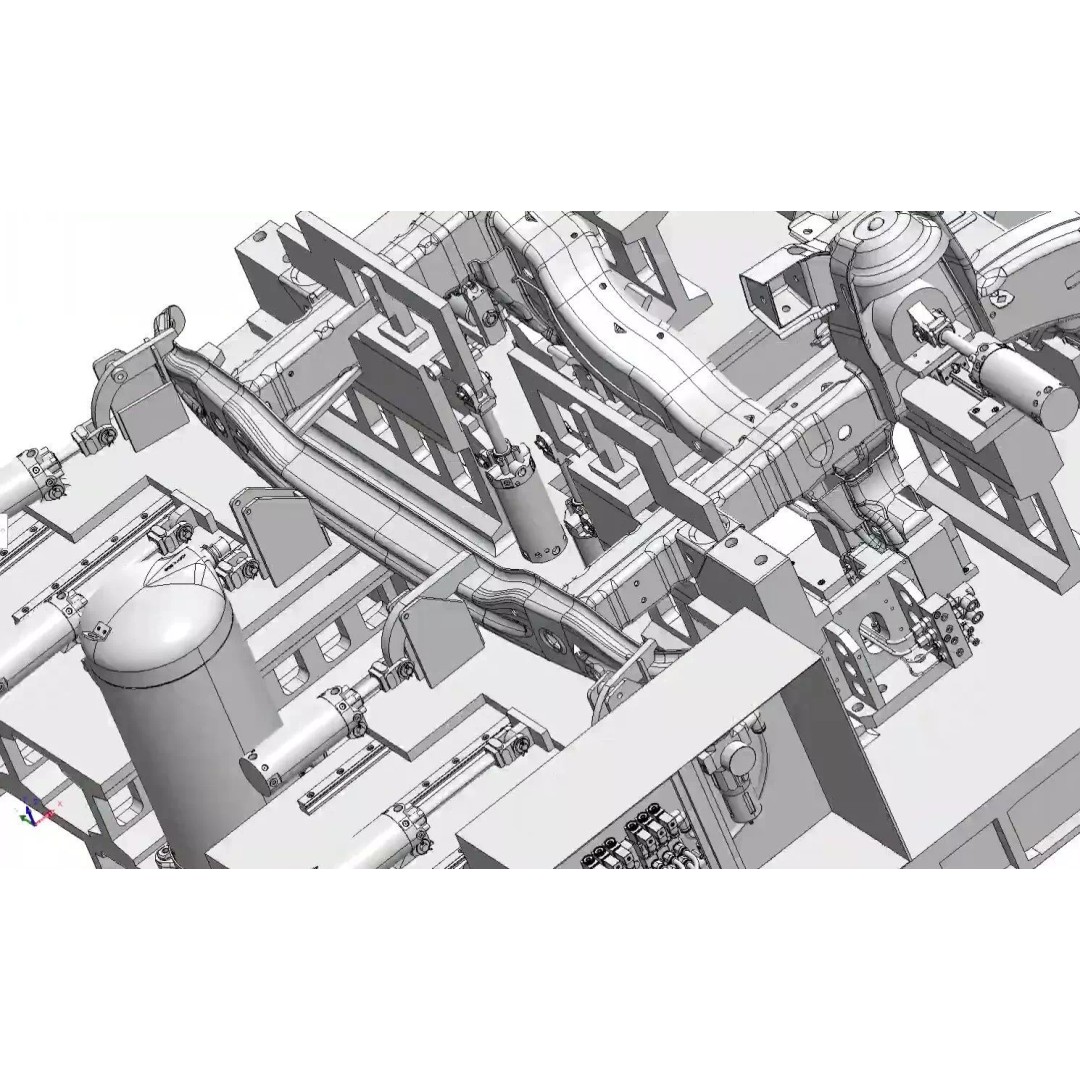

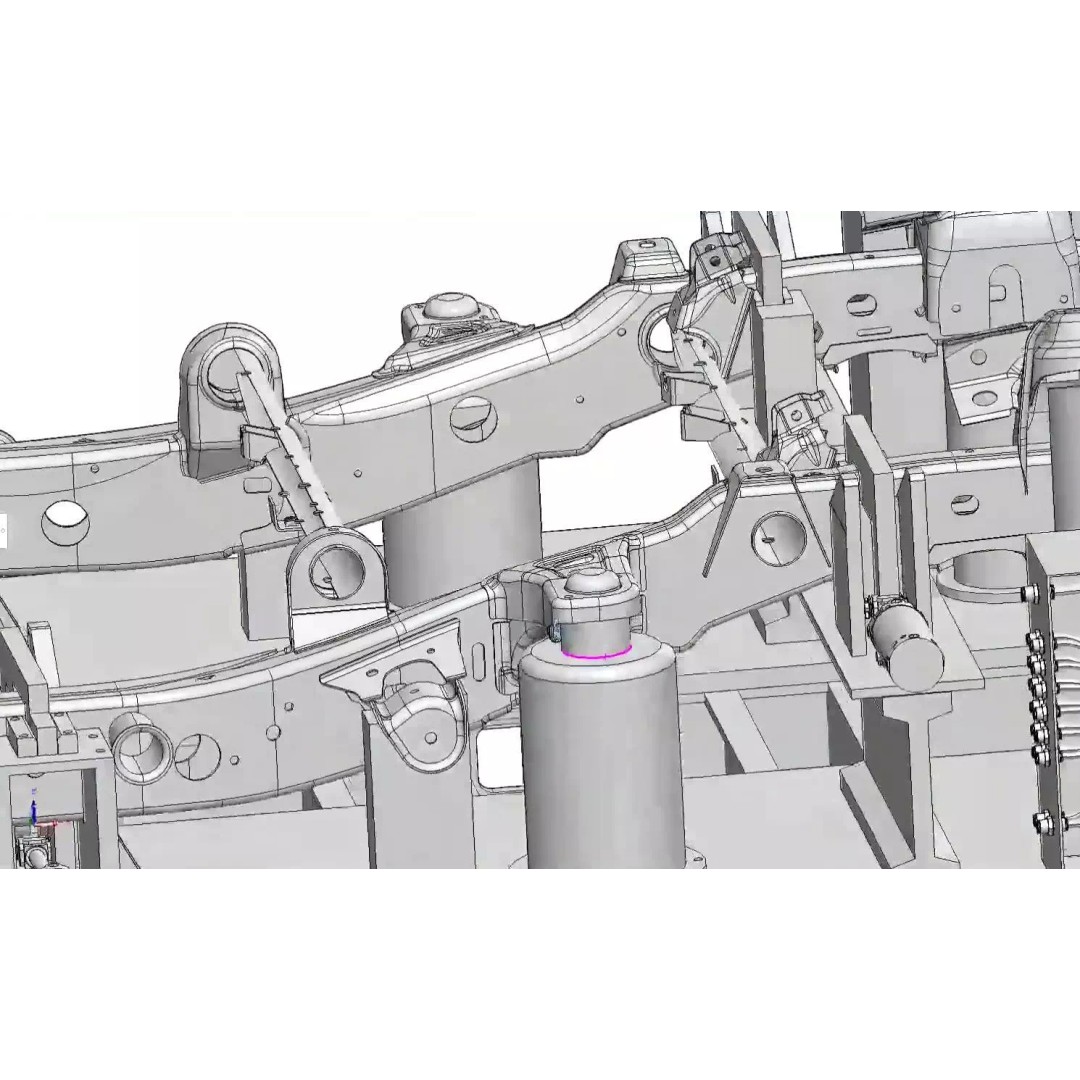

Discover the Car Chassis Welding Fixture 3D Model, a high-precision CAD design engineered for optimal positioning, clamping, and welding of automotive frames. This fixture ensures dimensional stability and repeatability, making it essential for high-volume automotive production.
With its dedicated design, this welding fixture is tailored for effective frame alignment. The rigid base structure maintains geometry during the welding process, minimizing distortion and ensuring consistent weld quality. Its modular fixture elements allow for easy adjustments and maintenance, making it a versatile addition to any automotive manufacturing facility.
- Dedicated automotive chassis welding fixture design
- Accurate locating pins, clamps, and supports for frame alignment
- Rigid base structure to maintain geometry during welding
- Compatible with manual, semi-automatic, and robotic welding lines
- Optimized access for welding torches and robots
- Stable clamping system for complex frame structures
- Production-ready CAD model for tooling validation
This 3D model is ideal for applications in passenger vehicle chassis welding, SUV and pickup truck frame assembly, and automotive Body-in-White (BIW) production. It is also suitable for welding process planning and simulation, serving as a fixture design reference for OEM and Tier-1 suppliers.
Ready to enhance your automotive production capabilities? Download now!
